Experienced Premix Feed Manufacturer

Unique packaging design helps customers quickly open the local market, increase visibility, and increase revenue.

Premix is not a simple product combination. We have many years of scientific research foundation. Through school-enterprise cooperation, enterprises independently research and develop to ensure product quality and feed consistency.

Purchasing raw materials from well-known companies in MEIHUA, EPPEN, NHU, DEGUSSA, etc., while ensuring quality, reduce your procurement costs.

The after-sales service department is familiar with customs clearance materials in many countries and is proficient in the operation experience of domestic ports to reduce the error rate. Seamlessly connect with suppliers to reduce your communication costs.

Carrier delivery

After receiving the notification from the central control (Put in variety and quantity of raw materials), the large material(Corn, soybean meal, rice bran, etc.) feeder transfers the corresponding raw materials to the feeding port.

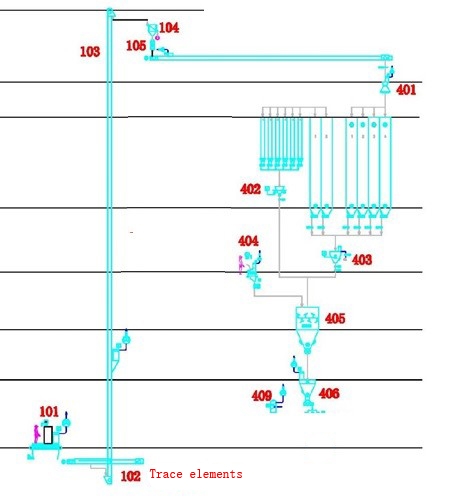

The carrier is fed from the feeding port (No. 101), after underground scraper conveyor (ID: 102) to the hoist (ID: 103), after the upgrade to the 7th floor, go through the plane rotary screen (No. 104) to remove impurities, after the permanent magnet tube (ID: 105) In addition to the iron, the scraper conveyor (No. 106) is transported to the rotary distributor (No. 401) and distributed to the corresponding silo.

Remarks: After this batch of feeding is finished, the feeding end instruction will be issued to the central control. After the central control operator switches the warehouse, feeds the next type of carrier material.

Vitamin input warehouse

Characteristics and vitamins by the addition ratio into the selective warehouse, by batching system automatically.

Before going to work on the same day, the custodian will arrange for the small clerk to collect and use the vitamins used on the day according to the amount of the raw material decomposition table. The vitamin raw materials put into the small silo will be transported directly to the 6th floor for temporary storage by variety and area.

After going to work, the small material feeder will feed the material at the small material feed port (No. 404) according to the central control instruction (current feed type, feed quantity, warehouse number).

After the feeding is finished, send the feeding end instructions to the central control. After the central control switch warehouse, feed the next variety of vitamins.

Remarks: The monomer vitamins that are added in a small amount and cannot be put into the warehouse need to be manually mixed. According to the raw material decomposition table, the operator collects the raw materials that need to be manually prepared from the warehouse and transports them to the small material batching room, which is temporarily stored by variety and area, and then decomposes the single ingredients according to the formula after work.

Primary products(Corn, soybean meal, rice bran, etc.), additive automatic batching

The carrier into the warehouse and part of the vitamin batching process are automatically controlled by the computer central batching system.
The operator, according to the product variety and batch currently produced, retrieves the formula from the central control computer and verifies that it is correct, then opens the batching instruction. The central batching system opens the batching equipment corresponding to the raw material warehouse number for continuous batching according to the design value of the formula.

Primary products are batched by an automatic batching scale with a measuring range of 250kg (No. 403); additives are batched by an automatic batching scale with a measuring range of 50kg (No. 402). Batching accuracy strictly controls the dynamic accuracy ≤3 ‰, and static accuracy ≤1 ‰, to ensure the accuracy of dosing.

Manual mixing of additives

Set up a full-time additive batching post. The materials that need manual batching are prepared by the additive batching workers in the small batching room on the first floor of the workshop.
The additive batching staff weighs the small materials one by one and batch by batch according to the manual batching part on the recipe decomposition sheet.
The prepared additives are arranged in varieties, batches, and regions. After each batch of additives is dispensed, review the quantity of the additive species, after confirming that it is correct, sign the formula decomposition sheet, and place the formula decomposition sheet on top of the batch of small materials for identification.

Set up a full-time additive operator post to be responsible for the addition of manual preparation of additives.

The operator adds according to the order of the products produced on the day and the central control instructions. Only two batches of additives are allowed to be placed on an operating trolley, and different batches are distinguished.

Before adding, recheck the types of additives according to the formula decomposition sheet, sign the formula sheet after confirming that it is correct, and start adding work. Pour the additives from the additive ingredient room on the 4th floor to the additive feeding port (number: 404) on the 4th floor. They are placed in designated locations in batches and identified with a recipe decomposition sheet.

Set up a full-time additive feeding post to be responsible for the additive feeding work. Small material (additive) feeding personnel, according to the central control instruction from the small material (referring to the additive) feeding port (No. 404) to start the feeding work, after the end of the feeding, the feeding end instruction is issued to the central control operator. The central control operator checks the total amount of manually added small materials (feed additive vitamins) displayed by the weight sensor on the small hopper with the corresponding data of the formula sheet. After the verification is accurate, open the small material discharge bin door and enter the mixer (No.: 405).

When there are differences in the verification, the production is stopped, and the cause of the abnormality is found and handled.

After the raw materials(Corn, soybean meal, rice bran, etc.) put in the automatic batching scale for large materials(Corn, soybean meal, rice bran, etc.) (No.: 402), the automatic batching scale for small materials(feed additives) (No.: 403) and the small hand-feeding scale (No. 404) enter the mixer (No. 405), After 180 seconds of mixing, open the discharge bin door, and the materials enter the finished product bin (No. 406) to be packaged.

The finished products in the finished product warehouse (No. 406) are divided into finished products of the required specifications by the automatic packing scale (No. 407). The automatic packing scale is a weight-reducing automatic weighing packing scale with accurate weighing accuracy.
After finished packaging by an automatic sewing machine (ID: 408) sewing, the sewing machine comes packaging bag hemming function, which may be required for packaging the hemming joint package according to the customer. The finished products after sewing are transferred to the finished product transfer area through the transmission belt, and the transfer workers sort and stack them into the warehouse.
The dust generated in the packaging area of the finished product is collected by an independent pulse dust collector (No. 409).

Adding an amount of <0.2% feed additive, a V-blender 1: 4 ratio before premix, Then it is manually added in the additive batching room according to the actual added amount of the formula. Along with the other raw materials of the current batch, feed them at the additive feeding port (No. 404) and enter the mixer for mixing.
